10.3. Warning Function: Notes
The warning function is divided into two stages. It is displayed in the instrument panel and, if equipped, in the Head-Up Display.

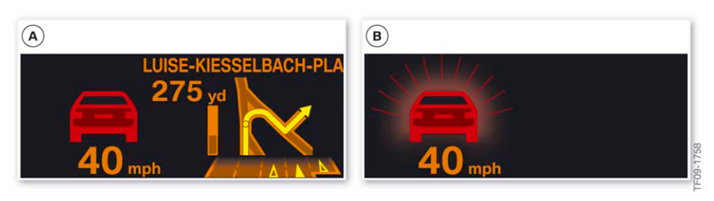

Courtesy of BMW OF NORTH AMERICA, INC. INDEX EXPLANATION CHART
| Index |
Explanation |
| A |
1st stage: advance warning, red symbol depicting a car |
| B |
2nd stage: acute warning, red flashing symbol depicting a car |
