6.1. System Components: Notes

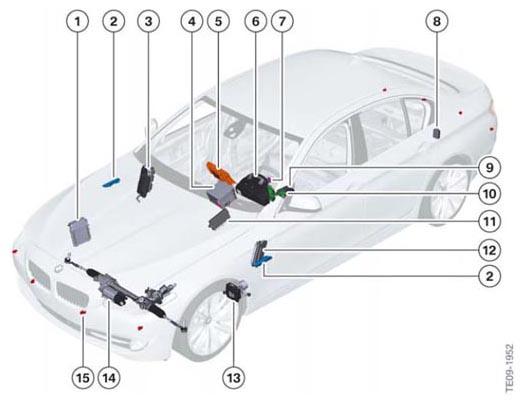

INDEX EXPLANATION CHART
| Index | Explanation |
|---|---|
| 1 | Digital Motor Electronics or Digital Diesel Electronics |
| 2 | Parking assistant ultrasonic sensor in the auxiliary turn indicator |
| 3 | Junction box (junction box electronics and front power distribution box) |
| 4 | Car Information Computer |
| 5 | Central Information Display |
| 6 | Instrument cluster |
| 7 | Center console operating unit and controller |
| 8 | Parking Maneuvering Assistant (PMA) |
| 9 | Integrated Chassis Management (ICM) |
| 10 | Steering column switch cluster |
| 11 | Car Access System |
| 12 | Footwell module |
| 13 | Dynamic Stability Control |
| 14 | Electromechanical power steering |
| 15 | Park Distance Control sensors |
