Delivery Stop: Remove Engine Oil Label (51 16 15)
Publication date: 2015-07-01Reference number: 51 16 15
DELIVERY STOP: REMOVE ENGINE OIL LABEL
SERVICE CAMPAIGN BULLETIN
| BMW: | I01 (i3 Rex); I12 (i8); E84 (X1); E89 (Z4 Roadster); F01/02 (7 Series Sedan); F06 (6 Series Gran Coupe); F07 (5 Series Gran Turismo); F10 (5 Series Sedan); F12 (6 Series Convertible); F13 (6 Series Coupe); F15 (X5); F16 (X6); F22 (2 Series Coupe); F23 (2 Series Convertible); F25 (X3); F26 (X4); F30 (3 Series Sedan); F31 (3 Series Sport Wagon); F32 (4 Series Coupe); F33 (4 Series Convertible); F34 (3 Series Gran Turismo); F36 (4 Series Gran Coupe); F80 (M3 Sedan); F82 (M4 Coupe); F83 (M4 Convertible); F85 (X5 M); F86 (X6 M) |
| GROUP: | Body Equipment |
SITUATION
Affected vehicles in dealer inventory must not be retailed or delivered until the label is removed.
Vehicles at ports of entry will be remedied prior to dealer delivery.
On affected vehicles, there is an incorrect label regarding the appropriate engine oil.
Affected vehicles can be identified with a "Vehicle Comment" in the DCS Warranty Vehicle Inquiry or ISPA Light.
CAUSE
The text on the label does not conform to legal regulations.
CORRECTION

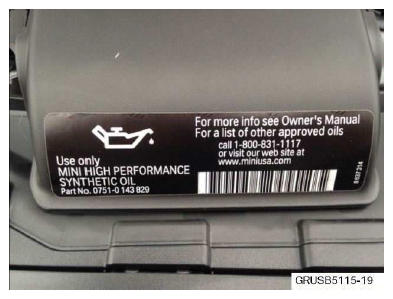

Remove the engine oil label (located in the front or rear of the hood).
PROCEDURE
Remove the label using a hot air gun to soften the adhesive. Gently pull the label off while varying the heat. Remove any remaining adhesive with solvent-based cleaner.
Discard the removed label.
WARRANTY INFORMATION
Reimbursement for this Service Action will be via normal claim entry utilizing the following information:
| Defect Code: | 00 71 21 02 00 |
| Labor Operation: | Labor Allowance: | Description: |
|---|---|---|
| 00 63 632 | 1 FRU | Remove engine oil label (Plus work) |
ADDITIONAL INFORMATION
Perform the procedure outlined in this Service Information on all affected vehicles before customer delivery or the next time they are in the shop for maintenance or repairs.
