All-Round Vision Camera A167*4B Connector End View

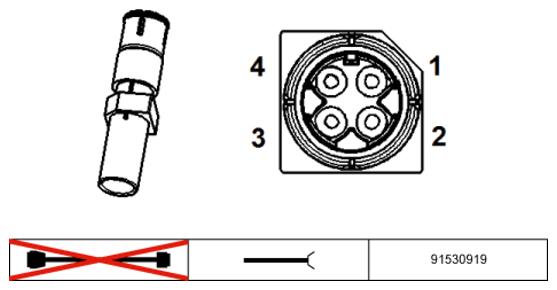

Fig 1: All-Round Vision Camera A167*4B Connector End View
G11231287Courtesy of BMW OF NORTH AMERICA, INC.
Pin Assignments At Plug Connector A167*4B

Pin Type Description /Signal type Connection /Measuring information
0 M Shielding Bumper camera, right
1 A Power supply, camera Bumper camera, right
2 E APIX data cable Bumper camera, right
3 E/A LIN-bus, camera Bumper camera, right
4 E APIX data cable Bumper camera, right
