12 61 280 Replacing oil pressure switch

Necessary preliminary tasks:

Switch off ignition.
REMOVE INTAKE AIR MANIFOLD .

Unlock plug and remove.

Remove oil pressure switch.

Installation:

Tightening torque, 13 62 2AZ .

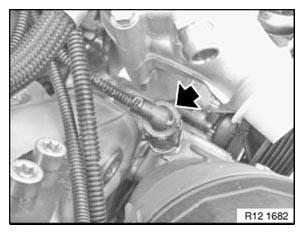

Fig 1: Locating Oil Pressure Switch

G06203528

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check and clear fault memory.
