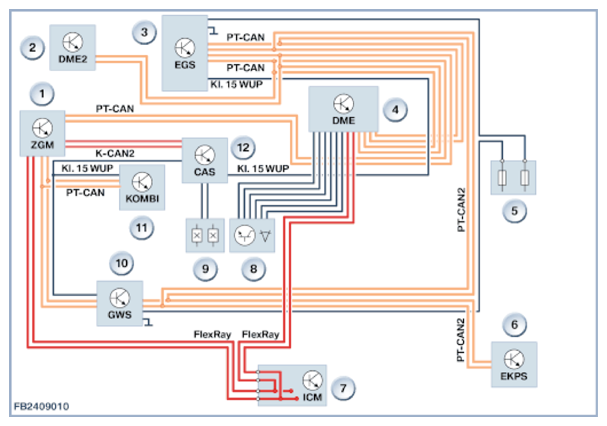

System overview
| Index | Explanation |
|---|---|
| 1 | Central gateway module (ZGM) |
| 2 | Digital engine electronics 2 (DME2) |
| 3 | Electronic transmission control (EGS) |
| 4 | Digital engine electronics (DME) |
| 5 | Front power distribution box |
| 6 | Electric fuel pump control (EKPS) |
| 7 | Integrated chassis management (ICM) |
| 8 | Accelerator pedal module |
| 9 | Brake light switch |
| 10 | Gear selector switch (GWS) |
| 11 | Instrument cluster (KOMBI) |
| 12 | Car Access System (CAS) |
