41 00... Repair Solution For Straight Shank/Hexagon Rivet Nut

Protective measures!

• Wear safety goggles
• Wear protective gloves

1. Carefully spot-drill rivet head with a larger drill bit/countersink

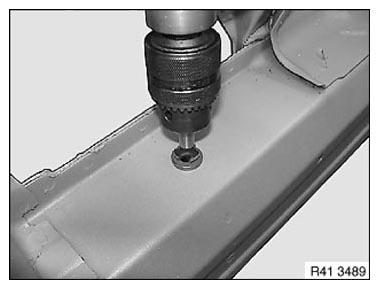

   Fig 1: Drilling Bore On Body

   Courtesy of BMW OF NORTH AMERICA, INC.
   IMPORTANT: Avoid paint damage

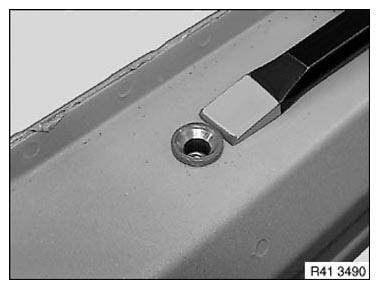

2. Knock rivet head away with a chisel
   Fig 2: Removing Knock Rivet Head Using Chisel

   Courtesy of BMW OF NORTH AMERICA, INC.
3. Punch through rivet shank into cavity, remove if necessary

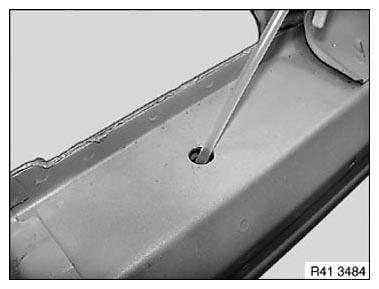

   Fig 3: Identifying Rivet Bore On Body

   Courtesy of BMW OF NORTH AMERICA, INC.
4. Clean component, eliminate paint damage if necessary

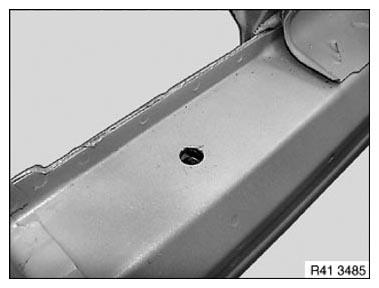

   Fig 4: Identifying Body Rivet Bore

   Courtesy of BMW OF NORTH AMERICA, INC.

   If the rivet shank can be removed:

   IMPORTANT: To avoid corrosion, stop chips/swarf by means of cavity preservation.
   Follow NOTES ON CORROSION PROTECTION .
5. Preserving cavity

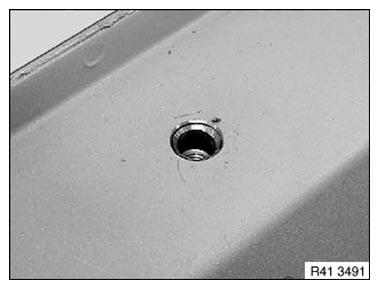

   Fig 5: Identifying Cavity Sealing

   Courtesy of BMW OF NORTH AMERICA, INC.

   If the rivet shank cannot be removed:

   WARNING: Danger of injury!
   Observe NOTES ON CAVITY FOAM .
   IMPORTANT: To avoid corrosion and rattling noises, stop chips/swarf and rivet nut shank with cavity foam.
   Remove foam remnants with isohexane (benzine).
   Fig 6: Identifying Cavity Sealing

   Courtesy of BMW OF NORTH AMERICA, INC.

1. 5. Stop rivet shank by means of specific foaming
2. 6. Set rivet nut with hand rivet gun
   NOTE: Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.

Hexagon/straight shank rivet nut (up to thread M8) with hand rivet gun ZS308

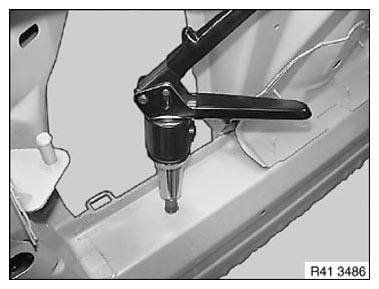

Fig 7: Installing Rivet Nut Using Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.

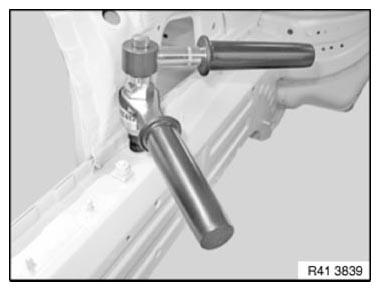

Hexagon/straight shank rivet nut (up to thread M12) with hand rivet gun MB512

Fig 8: Setting Rivet Nut Using Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.
