41 00... Reinforcement Plate (Bonded)

In the case of a partial replacement piece, a body component is cut at a point described in the repair instructions.

A reinforcement plate is bonded in to ensure sufficient strength.

NOTE: The following graphics serve as general illustrations of reinforcement plate repair work. They apply to sectional repairs to the structure.

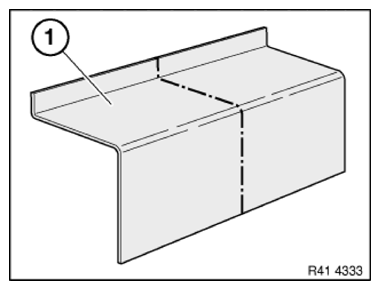

Mark component in accordance with measurement a and cut.

Fig 1: Identifying Reinforcement Plate Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Cut new part (1) in accordance with cut on vehicle and if necessary adjust to fit with straightening attachment or universal mount.

Fig 2: Identifying Reinforcement Plate Cutting Part

Courtesy of BMW OF NORTH AMERICA, INC.

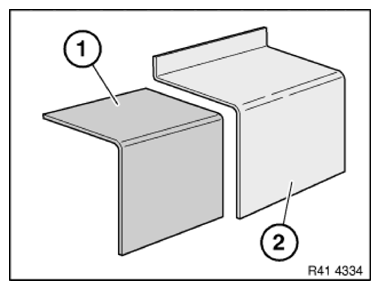

Make reinforcement plate (1) from trim of new part (2).

Length of reinforcement plate is 80 mm.

Fig 3: Identifying Reinforcement Plate And Part

Courtesy of BMW OF NORTH AMERICA, INC.

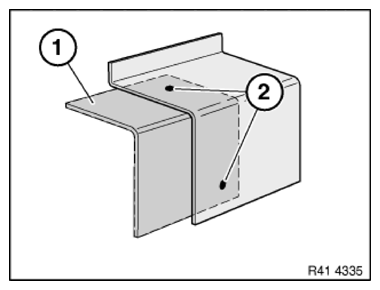

Slide reinforcement plate (1) half-way into component on body and fasten with 2 self-tapping screws (2).

Fig 4: Identifying Reinforcement Plate And Self-Tapping Screws

Courtesy of BMW OF NORTH AMERICA, INC.

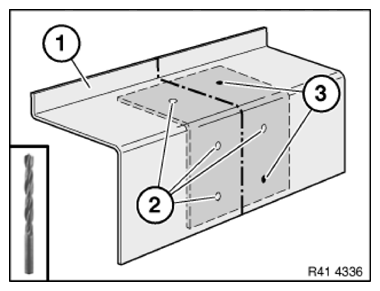

Adjust new part (1) to fit and set 4.3 mm dia. bore holes (2).

Remove new part again.

Release self-tapping screws (3).

Remove reinforcement plate.

Drill out bore holes (3) for screws to 4.3 mm dia.

Deburr all bore holes.

Fig 5: Identifying Reinforcement Plate, Bore Holes And Self-Tapping Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind new part and body in area of bonding surfaces.

Installing reinforcement plate

Clean all bonding surfaces with cleaning agent R1.

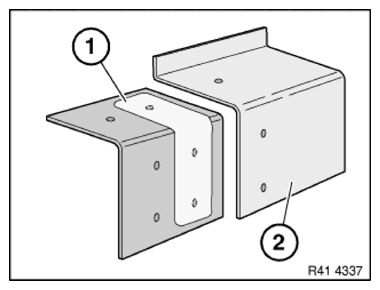

Apply adhesive (1) to reinforcement plate bonding surface.

Carefully slide reinforcement plate half-way into body component (2).

IMPORTANT: When joining reinforcement plate, make sure there is sufficient adhesive on bonding surfaces.

Fig 6: Identifying Adhesive Applying Area To Reinforcement Plate Bonding Surface

Courtesy of BMW OF NORTH AMERICA, INC.

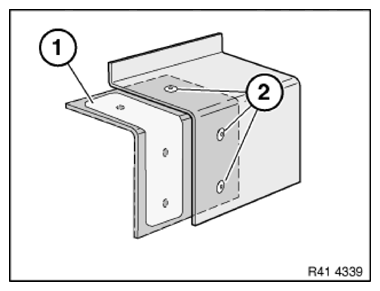

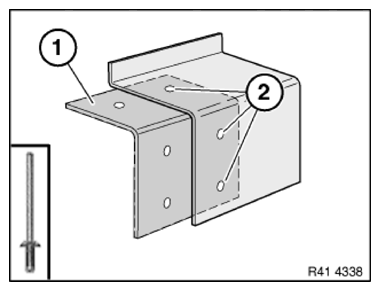

Rivet reinforcement plate (1) up to half-way with blind rivets N3 (2).

Fig 7: Identifying Reinforcement Plate Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Apply adhesive (1) to reinforcement plate bonding surface.

Fig 8: Identifying Reinforcement Plate Adhesive Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

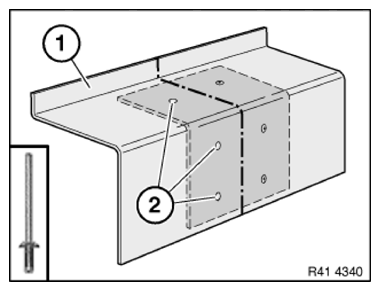

Install new part (1) with straightening attachment or universal mount and rivet with blind rivets N3 (2).

After adhesive has hardened, flatten adhesive area and seal blind rivets.

Fig 9: Identifying Universal Mount And Rivet With Blind Rivets N3

Courtesy of BMW OF NORTH AMERICA, INC.
