61 34... Removing and installing/replacing socket in center console (front)

Necessary preliminary tasks:

Detach plug connection holder (1) from center console (2).

Carefully pull LED (3) in direction of arrow out of center console (2).

Unlock catches (4) with a suitable tool.

Press socket (5) in direction of arrow out of center console (2).

Feed wiring harness (6) out of center console (2) and remove socket (5).

Installation:

Make sure socket (5) and LED (3) are correctly seated in center console (2).

Make sure wiring harness (6) is laid correctly.

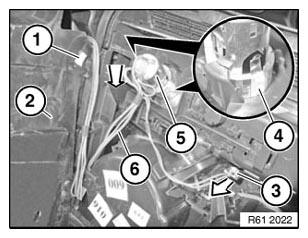

Fig 1: Identifying Plug Connection Holder, Center Console, LED, Catches, Socket, And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.
