61 13... In-line plugs, 4-pin, System DFK ELA

Special tools required:

• 61 0 316

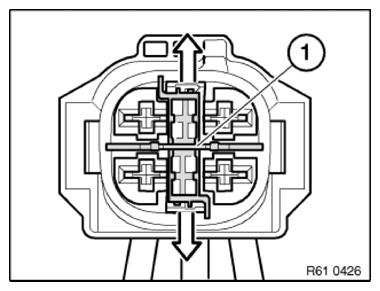

Press retaining hook in direction of arrow and remove lock (1).

Fig 1: Pressing Retaining Hook And Removing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation notes:

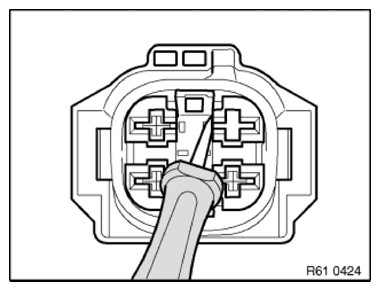

If necessary, side lock must also be unlocked with screwdriver.

Fig 2: Unlocking Side Lock

Courtesy of BMW OF NORTH AMERICA, INC.

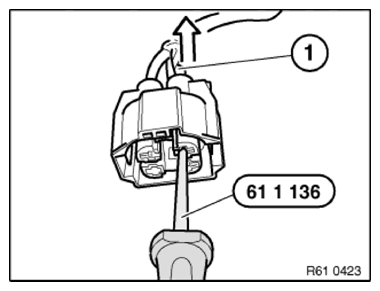

With special tool 61 0 316 (61 1 136), unlock contact and pull out cable with contact (1) towards rear.

Fig 3: Unlocking Contact And Pulling Out Cable

Courtesy of BMW OF NORTH AMERICA, INC.
