Control module

The functions of the control module are controlled by a microprocessor. The control module is supplied via terminal 30 with voltage (with 10 A fuse). The control module is activated via the wake-up line (terminal 15).

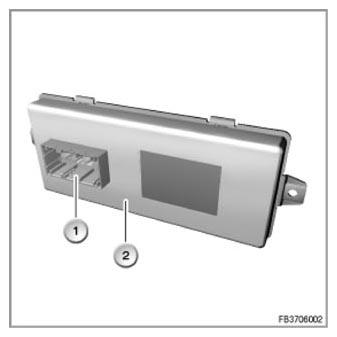

Fig 1: Identifying Control Module For Dynamic Drive
G09912070Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 Connector for Dynamic Drive
2 Control module for Dynamic Drive
