27 00... Topping Up Transfer Box Oil (ATC 45L)
IMPORTANT:
Use only the approved transmission oil in the transfer box
.
Failure to comply with this requirement will result in serious damage to the transfer box!
Failure to comply with this requirement will result in serious damage to the transfer box!
NOTE:
Only change oil when transfer box is at normal operating temperature.
Necessary preliminary tasks:
- Remove CROSS MEMBER .
Check transfer box oil level, correct:

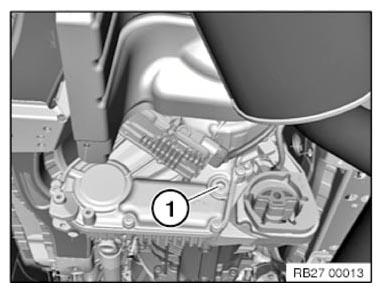

Undo oil filler plug (1).
Check transfer case oil level.
If necessary pour in transmission oil up to the lower edge of the oil filler plug opening (1).
Installation note:
Replace oil filler plug (1).
Tightening torque: 27 10 2AZ .
