Removing MPQ contacts from radio plug

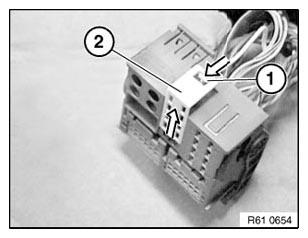

Press lock (1) in direction of arrow.

Detach secondary lock (2) from radio plug.

Fig 1: Detaching Secondary Lock From Radio Plug

Courtesy of BMW OF NORTH AMERICA, INC.

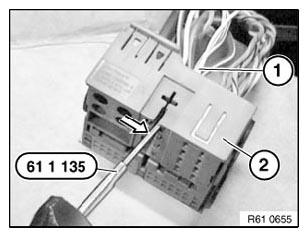

Feed special tool 61 1 135 past side of contact.

Press special tool 61 1 135 in direction of arrow.

Pull wire (1) with socket contact out of radio plug (2).

Fig 2: Pulling Wire Out Of Radio Plug

Courtesy of BMW OF NORTH AMERICA, INC.
