61 35 107 Removing and installing or replacing junction box electronics

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

Unfasten plug connection (1) and disconnect.

Release screw (2).

Fold down passenger compartment fuse box (3) in direction of arrow.

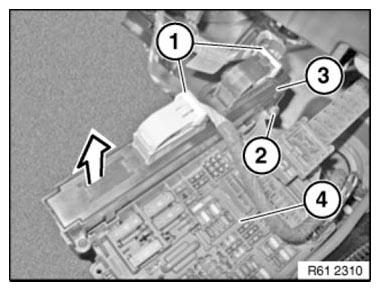

Fig 1: Folding Passenger Compartment Fuse Box

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Release screws (2) and pull junction box electronics (3) out of holder in direction of arrow.

Installation:

Make sure junction box electronics (3) are correctly seated.

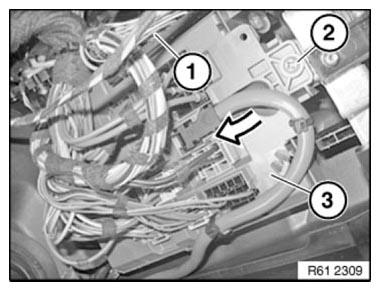

Fig 2: Pulling Junction Box Electronics Out Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming/coding.

Delete transport mode.
