61 35 146 Removing and installing/replacing Convertible top module

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

Unlock plug connections (1) and disconnect.

Pull Convertible top module (2) out of device holder (3).

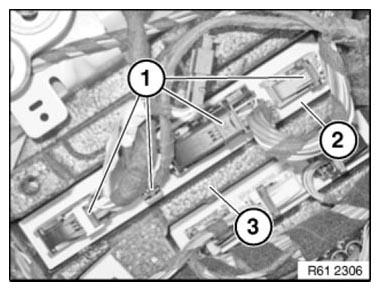

Fig 1: Identifying Plug Connection And Convertible Top Module Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming/coding.
