41 00... Reinforcement Plate (Bonded)

In the case of a partial replacement piece, a body component is cut at a point described in the repair instructions.

A reinforcement plate is bonded in to ensure sufficient strength.

Observe notes on REPAIR STAGE 2  .

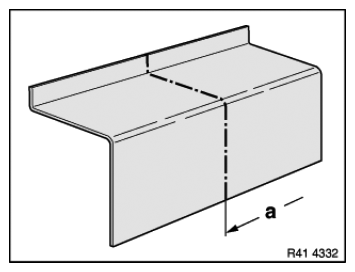

Mark component in accordance with measurement a and cut.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part

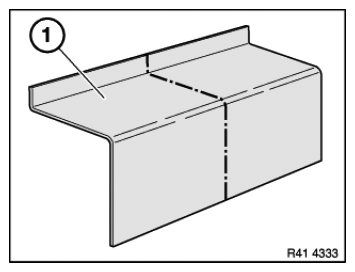

Cut new part (1) in accordance with cut on vehicle and if necessary adjust to fit with straightening attachment or universal mount.

Courtesy of BMW OF NORTH AMERICA, INC.

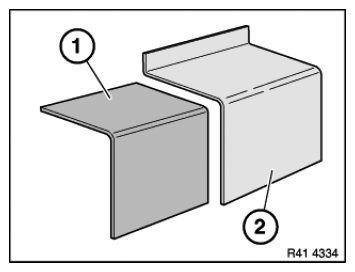

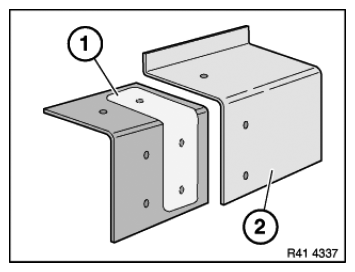

Make reinforcement plate (1) from trim of new part (2).

Length of reinforcement plate is 80 mm.

Courtesy of BMW OF NORTH AMERICA, INC.

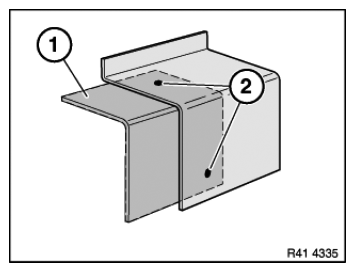

Slide reinforcement plate (1) half-way into component on body and fasten with 2 self-tapping screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

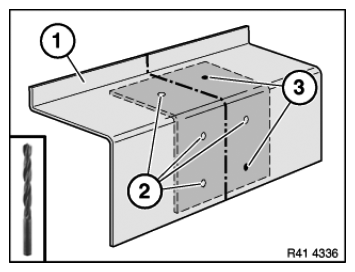

Adjust new part (1) to fit and set 4.3 mm dia. bore holes (2).

Remove new part again.

Release self-tapping screws (3).

Remove reinforcement plate.

Drill out bore holes (3) for screws to 4.3 mm dia.

Deburr all bore holes.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing reinforcement plate

Clean all bonding surfaces with cleaning agent R1.

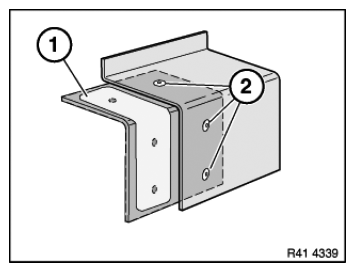

Apply adhesive (1) to reinforcement plate bonding surface.

Carefully slide reinforcement plate half-way into body component (2).

Courtesy of BMW OF NORTH AMERICA, INC.

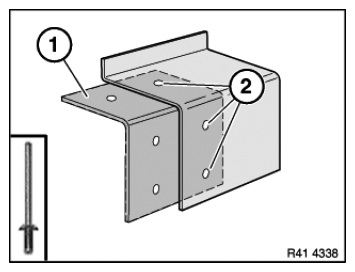

Rivet reinforcement plate (1) up to half-way with blind rivets N3 (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Apply adhesive (1) to reinforcement plate bonding surface.

Courtesy of BMW OF NORTH AMERICA, INC.

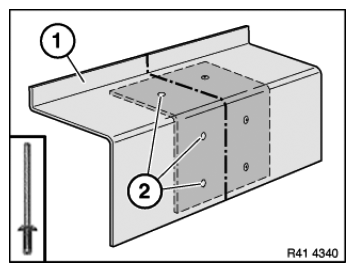

Install new part (1) with straightening attachment or universal mount and rivet with blind rivets N3 (2).

After adhesive has hardened, flatten adhesive area and seal blind rivets.

Courtesy of BMW OF NORTH AMERICA, INC.
