41 00... Repair Solution For Straight Shank/Hexagon Rivet Nut

Protection measures!

IMPORTANT: To prevent the material from tapering, do not drill out the rivet head.

Carefully spot-drill rivet head with a larger drill bit/countersink

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid paintwork damage
Knock rivet head away with a chisel

Courtesy of BMW OF NORTH AMERICA, INC.
Drive through rivet shank into cavity, remove if necessary

Courtesy of BMW OF NORTH AMERICA, INC.

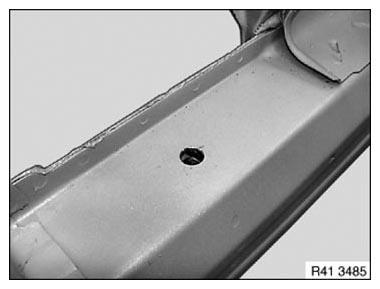

Clean component, eliminate paintwork damage if necessary

Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank can be removed:

IMPORTANT: To avoid corrosion, stop chips/swarf by means of cavity sealing.
Follow INSTRUCTIONS ON CORROSION PROTECTION .
Preserving cavity

Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank cannot be removed:

WARNING: Risk of injury!
Observe NOTES ON CAVITY FOAM .

IMPORTANT: To avoid corrosion and rattling noises, stop chips/swarf and rivet nut shank with cavity foam.
Remove foam remnants with isohexane (benzine).

Courtesy of BMW OF NORTH AMERICA, INC.

5. Stop rivet shank by means of specific foaming
Set rivet nut with hand rivet gun

NOTE: Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.

Hexagon/straight shank rivet nut (up to thread M8) with hand rivet gun ZS308

IMPORTANT: Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.

NOTE: According to the manufacturer, the pictured tool is suitable up to an M8 thread

Courtesy of BMW OF NORTH AMERICA, INC.

Hexagon/straight shank rivet nut (up to thread M12) with hand rivet gun MB512

IMPORTANT: Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: According to the manufacturer, the pictured tool is suitable up to an M12 thread
