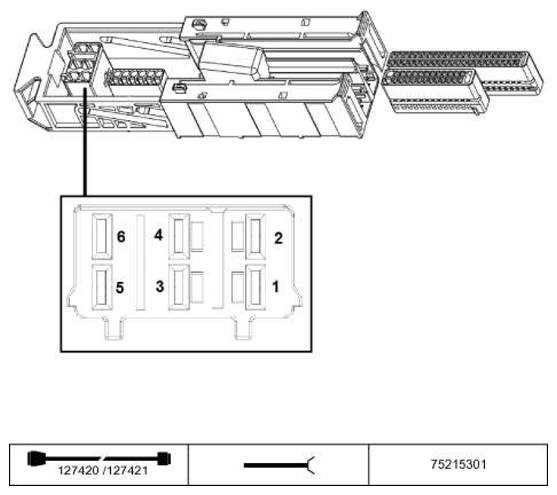

A6000 DME Control Module, Module 3 X60003 Connector End View
Pin Assignments At Plug Connector X60003
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Supply, terminal 30 | Junction box |
| 2 | E | Supply, terminal 87 | Junction box |
| 3 | E | Supply, terminal 87 | Junction box |
| 4 | M | Negative supply | Ground point |
| 5 | M | Negative supply | Ground point |
| 6 | M | Negative supply | Ground point |
