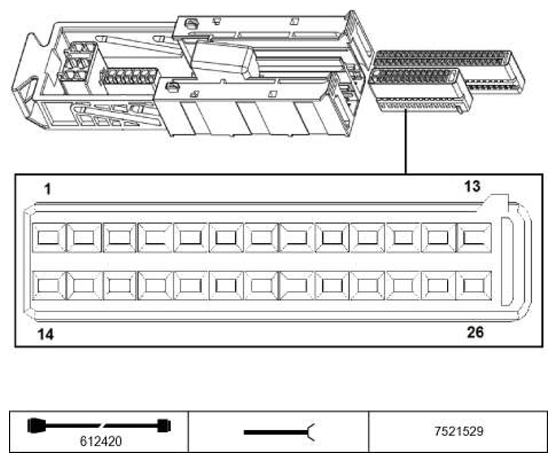

A6000 DME Control Module, Module 7 X60007 Connector End View
Pin Assignments At Plug Connector X60007
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | -- | Not occupied | |
| 2 | -- | Not occupied | |
| 3 | -- | Not occupied | |
| 4 | E | Sensor signal | Engine coolant temperature sensor |
| 5 | A | Negative activation | VANOS solenoid valve, intake |
| 6 | -- | Not occupied | |
| 7 | A | Activation | Wastegate valve |
| 8 | M | Sensor ground | Rail pressure sensor |
| 9 | E | Sensor signal | Rail pressure sensor |
| 10 | A | Voltage supply | Rail pressure sensor |
| 11 | E | Sensor signal | Intake camshaft sensor |
| 12 | E | Sensor signal | Exhaust camshaft sensor |
| 13 | E | Signal | Oil pressure switch |
| 14 | A | Activation | Wastegate valve 2 |
| 15 | -- | Not occupied | |
| 16 | -- | Not occupied | |
| 17 | M | Sensor ground | Engine coolant temperature sensor |
| 18 | A | Negative activation | VANOS solenoid valve, exhaust |
| 19 | E | Signal | Characteristic map thermostat |
| 20 | -- | Not occupied | |
| 21 | -- | Not occupied | |
| 22 | -- | Not occupied | |
| 23 | -- | Not occupied | |
| 24 | M | Sensor ground | Intake camshaft sensor |
| 25 | M | Sensor ground | Exhaust camshaft sensor |
| 26 | E/A | Activation | Electric coolant pump Bit-serial data interface (BSD) |
