72 12... Overview of airbag modules, airbag control unit, belt tensioners

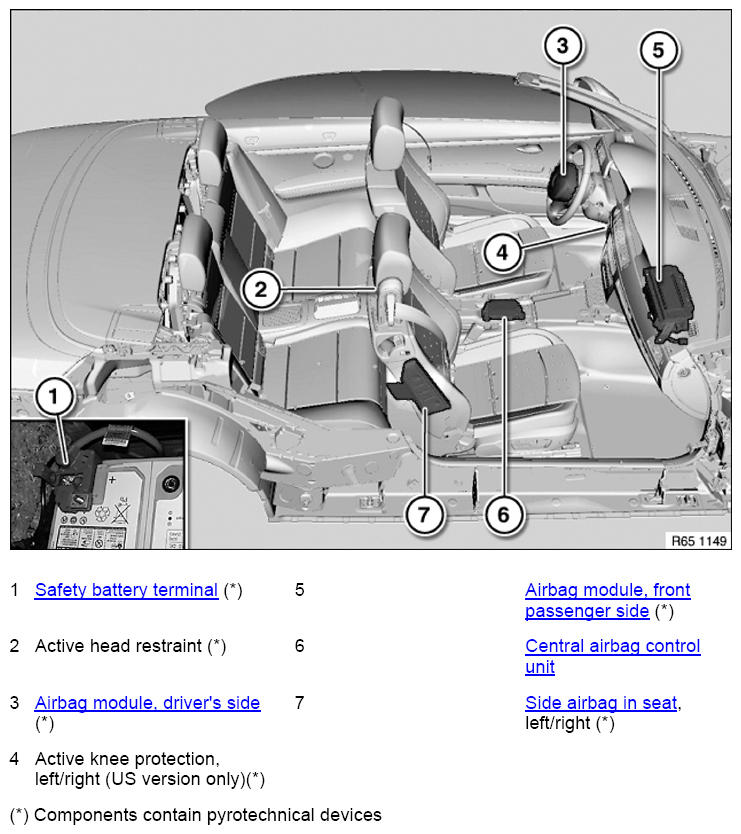

Fig 1: Overview Of Airbag Modules, Control Unit And Belt Tensioners
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
