61 13... In-line plugs, 6- to 50-pin, System Elo

Open lock.

Fig 1: Opening Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable strap.

Installation note:

Cable strap must be reinstalled.

Fig 2: Locating Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Detach catch (1) from connector housing (2).

Fig 3: Detaching Catch From Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Press out contact carrier (3) with wiring harness (4) through opening (5).

Fig 4: Pressing Contact Carrier With Wiring Harness Through Opening

Courtesy of BMW OF NORTH AMERICA, INC.

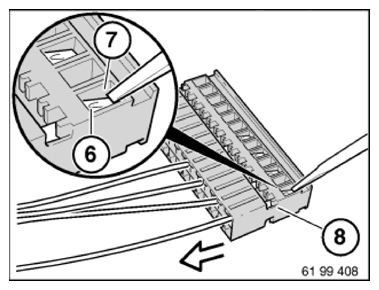

Hold down retaining hook (6) of defective contact and pull cable and contact up to secondary lock (8).

Fig 5: Detaching Catch From Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook once again in secondary lock (8) and pull cable and contact completely out of contact carrier.

Fig 6: Pulling Cable Of Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
