Functional networking
A complex system network with distributed functions in other control units is necessary for implementation of the lane change warning. Both of the following graphics show the functional networking.

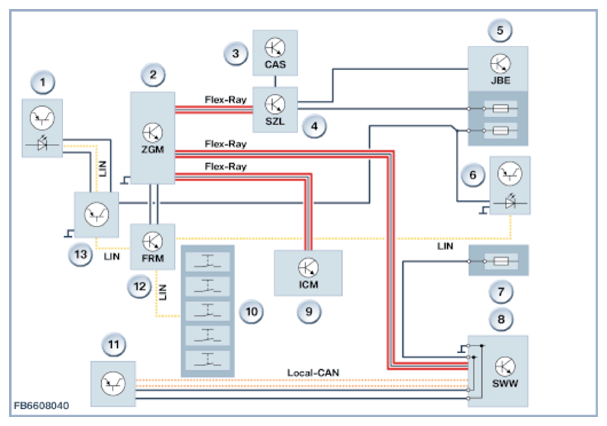

Example F01
| Item | Explanation |
|---|---|
| 1 | Exterior mirror, driver's side |
| 2 | Central gateway module (ZGM) |
| 3 | Car access system (CAS) |
| 4 | Steering column switch center (SZL) |
| 5 | Junction Box Electronics (JBE) |
| 6 | Exterior mirror, passenger's side |
| 7 | Power distribution box, rear |
| 8 | SWW control unit for lane change warning (master controller) |
| 9 | Integrated chassis management (ICM) |
| 10 | Assist systems operating facility |
| 11 | Lane change warning, slave |
| 12 | Footwell module (FRM) |
| 13 | Driver's door switch block |

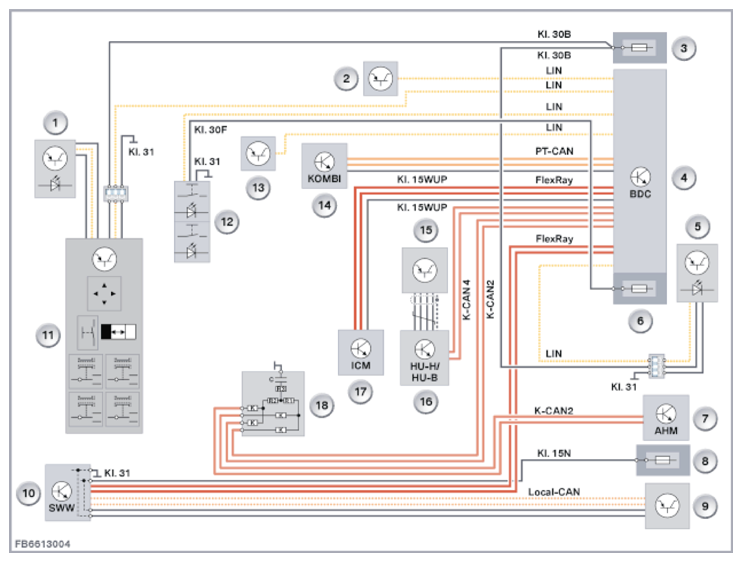

Example F15
| Item | Explanation |
|---|---|
| 1 | Exterior mirror, driver's side |
| 2 | Rain-light-solar-condensation sensor |
| 3 | Front fuse and relay module |
| 4 | Body Domain Controller |
| 5 | Exterior mirror, passenger's side |
| 6 | Fuse on the Body Domain Controller |
| 7 | Trailer Module (AHM) |
| 8 | Power distribution box, rear |
| 9 | Lane change warning, slave |
| 10 | Master control unit for lane change warning |
| 11 | Driver's door switch block |
| 12 | Assist systems operating facility |
| 13 | Steering column switch cluster |
| 14 | Instrument panel (KOMBI) |
| 15 | Central information display |
| 16 | Headunit (HU-H, HU-B) |
| 17 | Integrated chassis management (ICM) |
| 18 | Star coupler |
