Functional description
Strain gauge are used for detecting the pressure. A steel membrane equipped with strain gauge in the sensor is deformed by the adjacent pressure. The changes in resistance in the strain gauge are electronically detected by a Wheatstone bridge and evaluated. The measured voltage is then included as an actual value in the charge-air-pressure control.

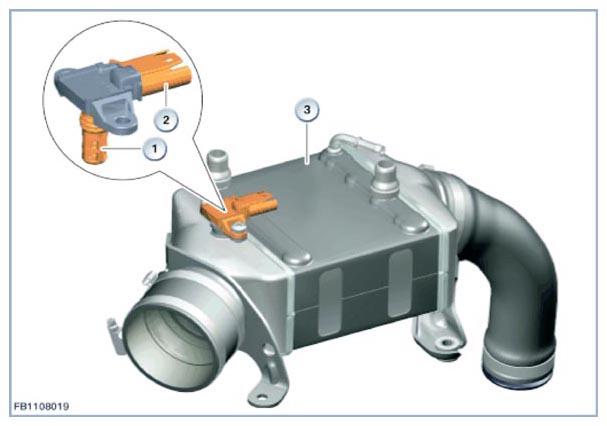

| Item | Explanation |
|---|---|
| 1 | Charging pressure sensor |
| 2 | 4-pin plug connection |
| 3 | Charge air cooler |
