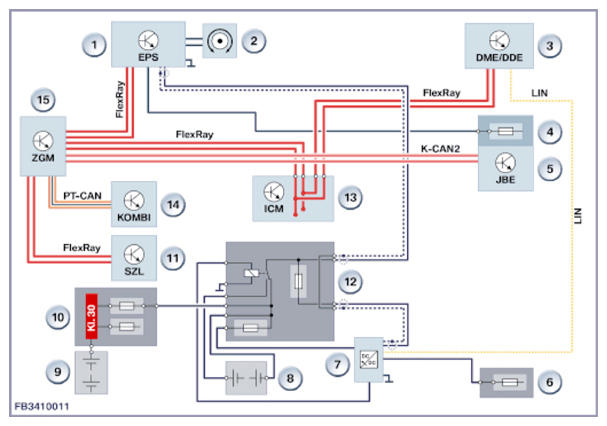

System network: EPS 24 V
Shown here: EPS 24 V
| Item | Explanation |
|---|---|
| 1 | EPS control unit |
| 2 | Steering-torque sensor |
| 3 | Digital Motor Electronics or Digital Diesel Electronics |
| 4 | Fuse on junction box |
| 5 | Junction Box Electronics (JBE) |
| 6 | Fuse, rear power distribution box |
| 7 | Charging controller for auxiliary battery with DC/DC converter |
| 8 | Auxiliary battery |
| 9 | Battery |
| 10 | Fuse in power distribution box on the battery |
| 11 | Steering column switch center (SZL) |
| 12 | Cut-off relay |
| 13 | Integrated chassis management (ICM) |
| 14 | Instrument panel (KOMBI) |
| 15 | Central gateway module (ZGM) |
The following other control units communicate with the electromechanical power steering:
