Active front steering control unit
The AL control unit is fitted in a protective housing on the floor of the vehicle in the left-hand footwell. The purpose of the AL control unit is to activate the servomotor of the active steering. In addition, the AL control unit processes the rotor position sensor signals. A temperature sensor in the AL control unit monitors the output stage for the servomotor.
Integrated Chassis Management (ICM) is the higher-level control unit for the suspension control systems.
The control unit for the active steering is connected across 4 plug connections to the vehicle electrical system. The AL control unit is equipment attached to the bus on the FlexRay.

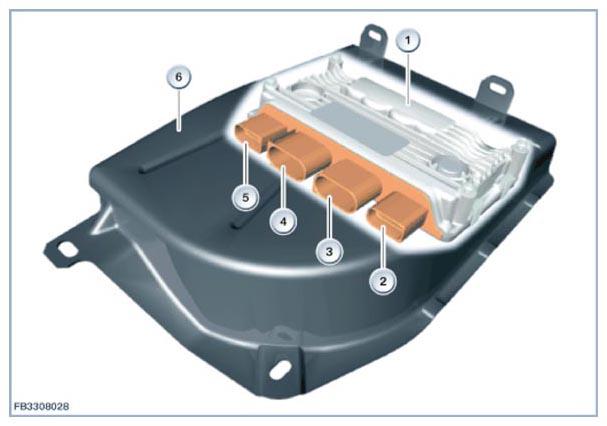

| Index | Explanation |
|---|---|
| 1 | Control unit for active steering (AL) |
| 2 | Twelve-pin plug connection (wiring harness) |
| 3 | Plug connection 3-pin (voltage supply) |
| 4 | Three-pin plug connection (servomotor) |
| 5 | Twelve-pin plug connection (sensor and electric servomotor lock) |
| 6 | Protective housing |
