Integral Active Steering system network

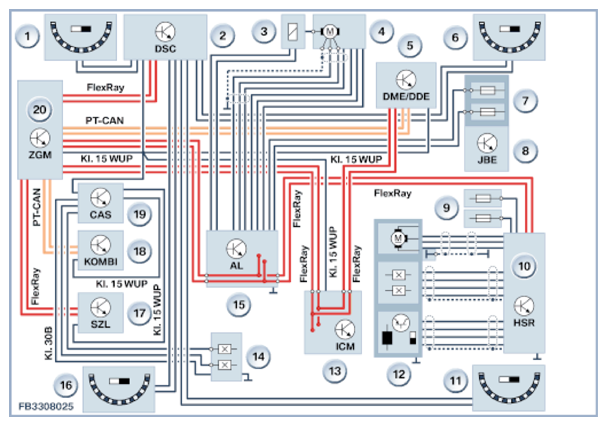

The following graphics show the system network for the Integral Active Steering.
| Index | Explanation |
|---|---|
| 1 | Front left wheel speed sensor |
| 2 | Dynamic Stability Control (DSC) |
| 3 | Electric servomotor lock |
| 4 | Servomotor |
| 5 | DME (Digital Engine Electronics) or DDE (Digital Diesel Electronics) |
| 6 | Front right wheel speed sensor |
| 7 | Front power distribution box |
| 8 | Junction Box Electronics (JBE) |
| 9 | Rear power distribution box |
| 10 | Rear axle slip angle control (HSR) |
| 11 | Front right wheel speed sensor |
| 12 | Servomotor with rotor position sensor and steering tie rod position sensor |
| 13 | Integrated chassis management (ICM) |
| 14 | Brake light switch |
| 15 | Active Steering (AL) |
| 16 | Rear left wheel speed sensor |
| 17 | Steering column switch cluster (SZL) |
| 18 | Instrument cluster (KOMBI) |
| 19 | Car Access System (CAS) |
| 20 | Central gateway module (ZGM) |
NOTE:
Forced connection active steering and rear axle slip angle control (HSR)!
The rear axle slip angle control can not be ordered as optional equipment on its own.
