Functional networking
After being recorded and processed, the data from the steering column switch cluster (SZL) are relayed to the appropriate control units via FlexRay. The steering column switch cluster (SZL) can be assessed with the diagnosis system via the central gateway module (ZGM). Information on the diagnosis can be called up via the FlexRay.

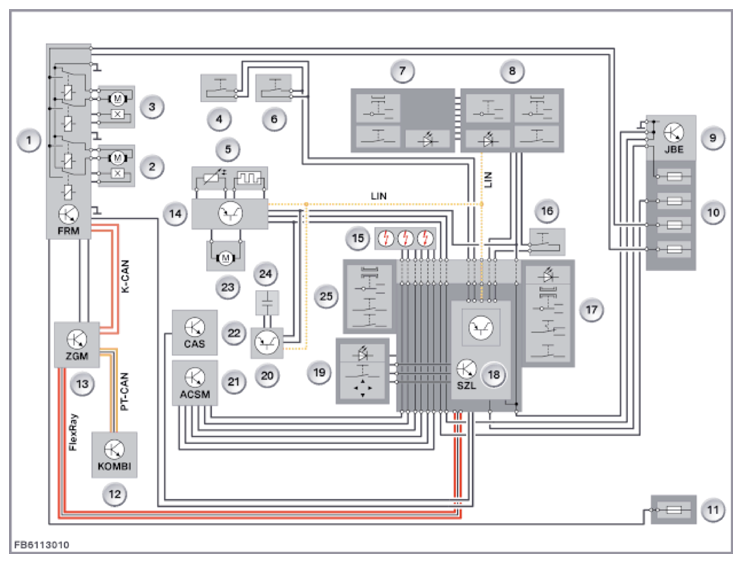

| Item | Explanation |
|---|---|
| 1 | Footwell module (FRM) |
| 2 | Drive for steering column adjustment, vertical |
| 3 | Drive for steering column adjustment, horizontal |
| 4 | Shift paddle, left |
| 5 | Steering wheel heating with temperature sensor |
| 6 | Shift paddle, right |
| 7 | Left-hand multifunction steering column switch cluster |
| 8 | Switch cluster, multifunction steering wheel, right |
| 9 | Junction Box Electronics (JBE) |
| 10 | Power distributor in junction box |
| 11 | Power distribution box, rear |
| 12 | Instrument panel (KOMBI) |
| 13 | Central gateway module (ZGM) |
| 14 | Electronic steering wheel module |
| 15 | Driver's airbag |
| 16 | Fanfare button |
| 17 | Steering column lever, wiper switch |
| 18 | Steering column switch center (SZL) |
| 19 | Switch for steering column adjustment and steering wheel heating |
| 20 | Electronics of touch detection |
| 21 | Crash Safety Module (ACSM) |
| 22 | Car access system (CAS) |
| 23 | Vibration actuator |
| 24 | Touch detection sensor |
| 25 | Drop arm, turn signal/high beam switch with on-board computer button |
