Shift paddles

The signals from the shift paddles, representing gearshift commands, are resistance-encoded and transmitted to the steering column switch cluster (SZL) through hard-wired lines. The steering column switch cluster (SZL) converts the signal for the FlexRay. The electronic transmission control (EGS) thereby receives the gearshift request through a bus signal.

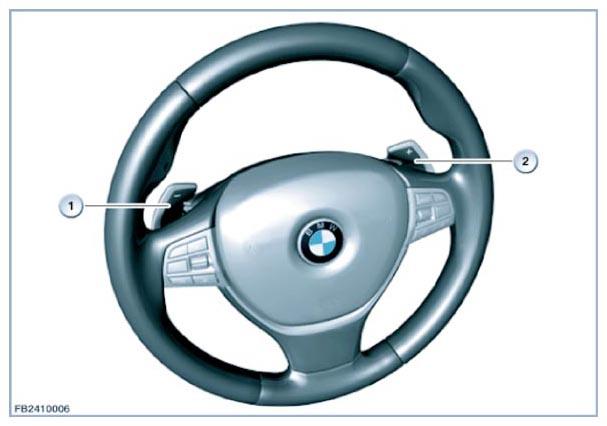

Fig 1: Identifying Shift Paddle

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Left shift paddle: Downshift - pull briefly
2	Right shift paddle: Upshift - pull briefly
