Steering column lever, turn indicator/high-beam switch
The steering-column lever on the left of the steering column has the following functions:
- High beam assistant button
- On-board computer button
- Direction indicator lights
- Headlight flasher

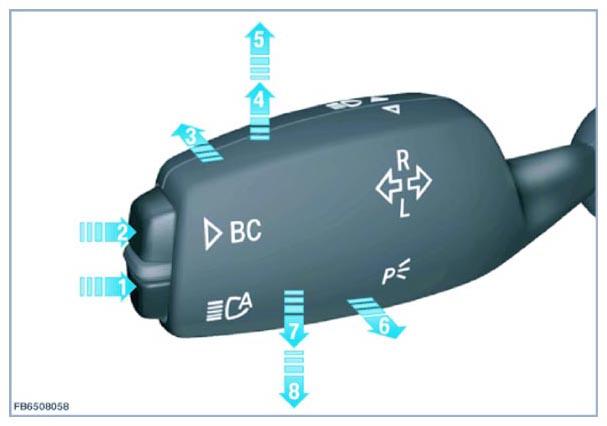

| Item | Explanation |
|---|---|
| 1 | High beam assistant button |
| 2 | On-board computer button |
| 3 | High-beam headlight |
| 4 | Triple turn signal, right-hand turn indicator |
| 5 | Continuous flashing, right-hand turn indicator |
| 6 | Headlight flasher |
| 7 | Triple turn signal, left-hand turn indicator |
| 8 | Continuous flashing, left-hand turn indicator |
The steering column switch cluster (SZL) generates the switching signals based on the status of the column stalk's current position. The switch signals are made available by the steering-column switch cluster (SZL) across the FlexRay.
The footwell module (FRM) receives the request signal via a bus signal from the turn signal/high beam switch as well as from the high-beam assistant button (FLA).
Pressing the on-board computer button in an axial direction triggers the requests for the on-board computer. The steering column switch cluster (SZL) sends the request signal to display the on-board computer functions via the FlexRay.
In the case of vehicle equipment without the high-beam assistant (FLA), the button on the steering column stalk turn indicator/high-beam switch is not required. A large button is used instead.
