SOS button with emergency call LED
The emergency call button with emergency call LED is directly connected to the TCB control unit basic version.
Triggering an emergency call:
- Touch the covering flap of the emergency call button and open it.
- Press the emergency call button until the emergency call LED lights up. The connection is established.
- When the emergency call LED flashes, the connection has been established.
The manual emergency call can be cancelled within 5 seconds.

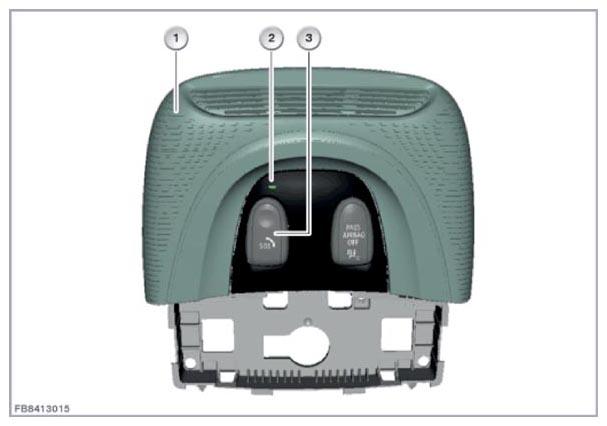

| Item | Explanation |
|---|---|
| 1 | Roof function center |
| 2 | Emergency call LED |
| 3 | Emergency call button |
| 4 |
