61 13... Crimping optical fibres

To crimp optical fibres, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 323 (2) from crimping set 61 4 320 .

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

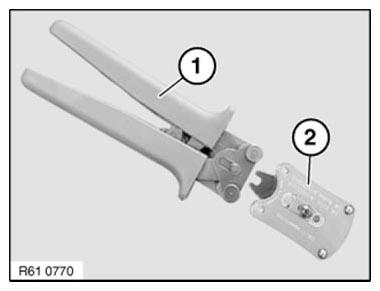

Fig 1: Identifying Hand Pliers With Crimping Head (61 4 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Move contact guide by means of stop lever (1) into corresponding position (pin contact or jack).

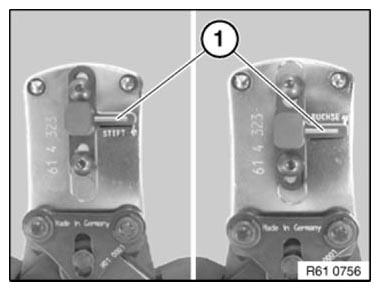

Fig 2: Identifying Stop Lever On Plier

Courtesy of BMW OF NORTH AMERICA, INC.

Open pliers (2).

Place pin contact or jack (1) in crimping head and secure with locking lever (3).

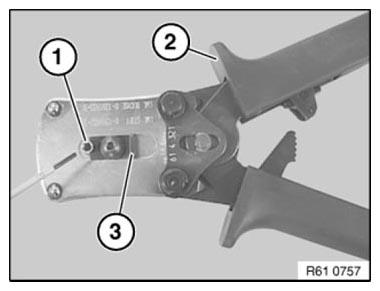

Fig 3: Placing Pin Contact Or Jack On Crimping Head

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for CUTTING AND STRIPPING INSULATION FROM OPTICAL FIBRES .

Insert stripped optical fibre (1) as far as it will go into pin contact or jack (2).

Close pliers (3) fully.

Open pliers (3) and locking lever (4).

Remove optical fibre (1).

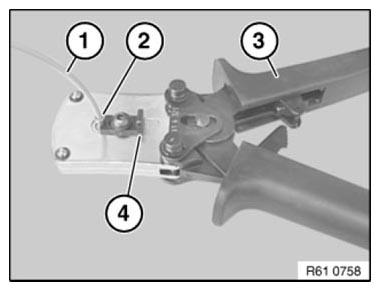

Fig 4: Removing Optical Fibre

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make sure optical fibre is correctly seated in jack.

Right (A)

End of optical fibre (1) must be flush with tip of pin contact (2).

Wrong (B)

End of optical fibre (1) is not flush with tip of pin contact (2).

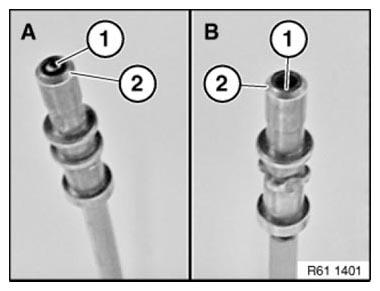

Fig 5: Identifying Optical Fibre End With Pin Contact Tip

Courtesy of BMW OF NORTH AMERICA, INC.
