61 13... In-line plugs, 2-pin, System JPT ELA

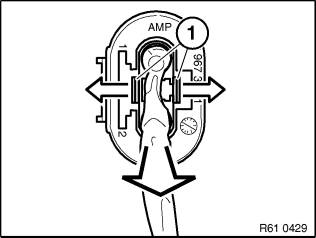

Press lock (1) in direction of arrow and slide connector forward.

Fig 1: Locating Lock

Courtesy of BMW OF NORTH AMERICA, INC.

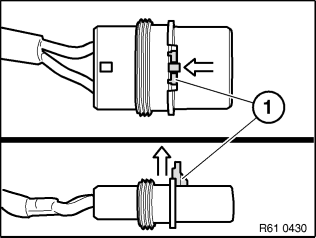

Press lock (1) downward and slide out to one side.

Fig 2: Locating Lock

Courtesy of BMW OF NORTH AMERICA, INC.

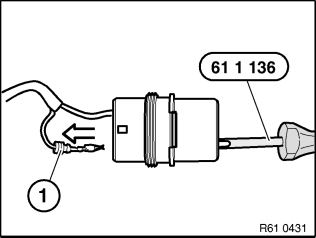

With special tool 61 0 316 (61 1 136), unlock contact and pull out cable (1) with contact towards rear.

Fig 3: Removing Cable Using Special Tool 61 1 132

Courtesy of BMW OF NORTH AMERICA, INC.
