61 13... In-line plugs, 6- to 50-pin, System Elo

Open lock.

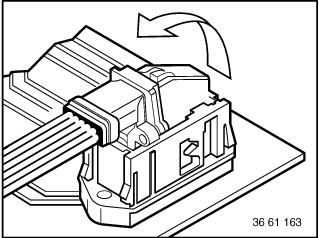

Fig 1: Unlocking Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable strap.

Installation note:

Cable strap must be reinstalled.

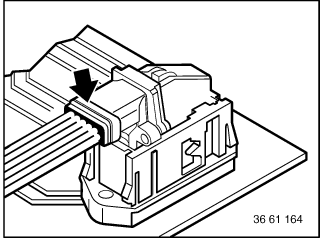

Fig 2: Unfastening Cable Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Detach catch (1) from connector housing (2).

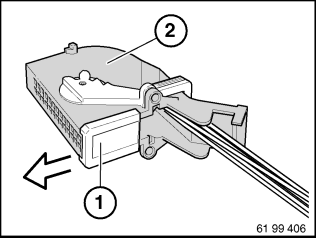

Fig 3: Identifying Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press out contact carrier (3) with wiring harness (4) through opening (5).

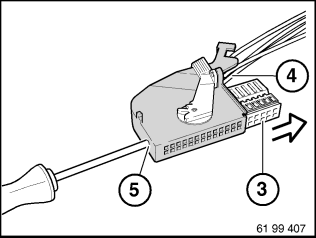

Fig 4: Identifying Contact Carrier, Wiring Harness, And Opening

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook (6) of defective contact and pull cable and contact up to secondary lock (8).

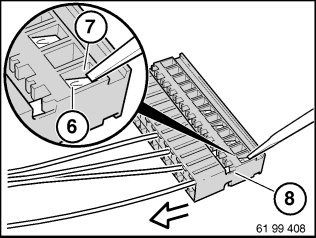

Fig 5: Identifying Arrester Hook And Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook once again in secondary lock (8) and pull cable and contact completely out of contact carrier.

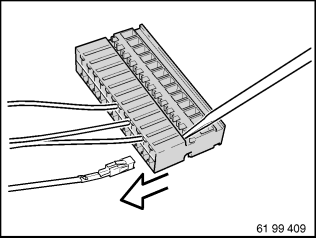

Fig 6: Pulling Cable And Contact Out From Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.
