61 13... Circular connector, 7-pin, 8-pin, system D2.5

Special tools required:

• 61 0 303

Carefully pull off rubber grommet (1).

Carefully press back retaining tabs (2) of internal connector (3).

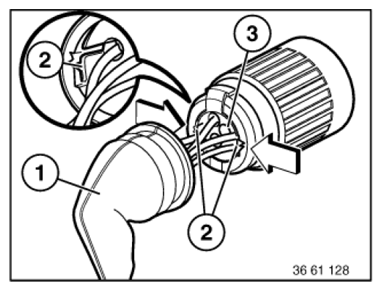

Fig 1: Pressing Back Retaining Tabs Of Internal Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Slide internal connector (3) in direction of arrow until retaining tabs (2) lock into locking groove (4).

Fig 2: Sliding Internal Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 61 0 303 (61 1 132) to press back retaining hook (5) of corresponding contact and pull out cable with contact.

Fig 3: Pressing Back Retaining Hook Using Special Tool (61 0 303)

Courtesy of BMW OF NORTH AMERICA, INC.
