11 00 670 Securing engine in installation position (N63)

Special tools required:

00 6 000 .
00 6 002 .
00 6 004 .
00 6 010
00 6 050 .
11 0 000 .

WARNING: Danger of injury!
Observe following instructions relating to special tool:

Prior to each use, check the special tools for defects, modifications and operational reliability.
Damaged/modified special tools must not be used!
No changes or modifications may be made to the special tools!
Keep special tools dry, clean and free of grease.

IMPORTANT: Before lifting the engine, check the lifting lugs for damage (cracks) and to ensure they are seated securely.

NOTE:

Numbering system for special tools has been re-encoded.

IMPORTANT: Special tool 00 6 000 must not be fitted when transverse member (1) is installed!

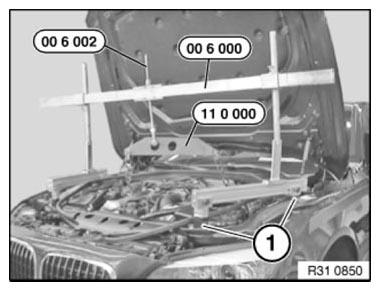

Fig 1: Identifying Transverse Member

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Secure engine compartment lid . See 51 00... SERVICE POSITION OF ENGINE COMPARTMENT LID or 51 00... ENGINE COMPARTMENT LID SERVICE POSITION (ACTIVE in service position.
Remove PANEL for engine compartment lid at side.
Remove left INTAKE SILENCER HOUSING .
Remove underbody protection . See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION or 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION at front and rear.
Remove STIFFENING PLATE .

Assemble transverse member 00 6 000 with special tools 00 6 002 00 6 004 , 00 6 010, 00 6 050 .

Fig 2: Assembling Transverse Member (00 6 000) Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Contact points (1) for special tool 00 6 050 are pictured.

Fig 3: Identifying Special Tool Contact Points

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Position transverse member 00 6 000 with a 2nd person helping on contact points (1).

Secure special tool 11 0 000 to spindle 00 6 002 .

Attach suitable chains to special tool 11 0 000 and suspend from both engine suspension lugs.

Fig 4: Positioning Transverse Member (00 6 000) On Contact Points

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its add-on parts) and the body.

WARNING: Danger of injury!
Tighten down all screws and nuts on transverse member 00 6 000 .

Fig 5: Identifying Transverse Member (00 6 000)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 22 11 1AZ .

NOTE: Remove vibration absorber on left front axle support.

Raise engine approx. 10 mm with cross member.

Fig 6: Identifying Cross Member And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
