41 00... Reinforcement Plate (Bonded)
In the case of a partial replacement piece, a body component is cut at a point described in the repair instructions.
A reinforcement plate is bonded in to ensure sufficient strength.
Observe procedures for REPAIR STAGE 2 .
NOTE:
The following graphics serve as general illustrations of reinforcement plate repair work. They apply to sectional repairs to the structure.

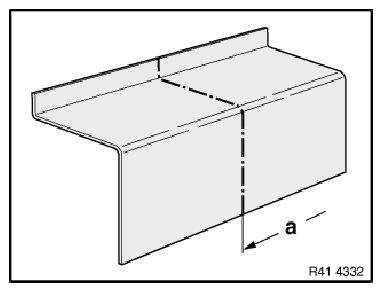

Mark component in accordance with measurement a and cut.
