51 71... Removing and installing/replacing left spring support passage cover

Necessary preliminary tasks:

NOTE: Description is shown on the E82 by way of example. There may be differences in detail in the case of other models.

NOTE: Spring strut removed for purposes of clarity.

Release catch (1) and remove cover (2).

Installation:

Catch (1) must not be damaged.

Note correct position of cover (2).

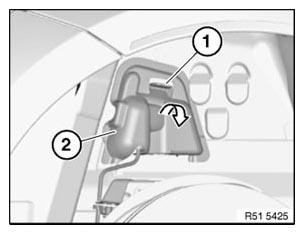

Fig 1: Releasing Catch

Courtesy of BMW OF NORTH AMERICA, INC.
