51 11... Installing/replacing number/license plate (without base)

NOTE: To obtain drilling template also refer to SI 00 11 09 (603).

Initial fitting:

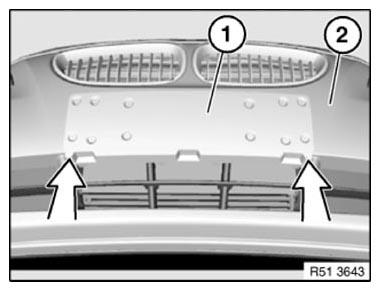

Place drilling hole template (1) on bumper (2).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to car registration number plate specifications.

Remove template (1) and secure car registration number plate with screws provided.

Tightening torque 51 11 3AZ .

Fit protective caps.

Fig 1: Removing Template

Courtesy of BMW OF NORTH AMERICA, INC.

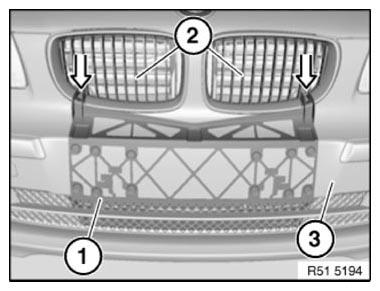

Place drilling hole template (1) on radiator grille (2) and bumper (3).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to car registration number plate specifications.

Remove template (1) and secure car registration number plate with screws provided.

Tightening torque 51 11 3AZ .

Fit protective caps.

Fig 2: Removing Radiator Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Thread repair:

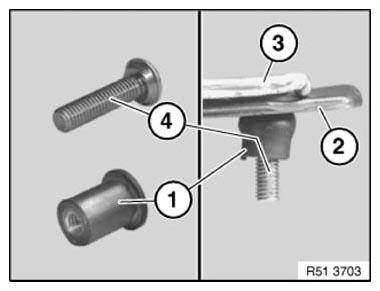

Drill out defective hole in bumper (2) to 9.5 mm diameter.

Insert blind rivet nut (1)*.

Secure car registration number plate (3) with car registration number plate (4).

Tightening torque 51 11 4AZ .

Fig 3: Inserting Blind Rivet Nut

Courtesy of BMW OF NORTH AMERICA, INC.
