51 71... Notes on fitting covers in front wheel arch

IMPORTANT: Make sure all covers in wheel arch are correctly seated in relation to each other.

E90/E91/E92:

Panel (1) overlaps cover (2, 3 and 5).
Cover (2) overlaps cover (3 and 4).
Cover (4) overlaps cover (3).
Cover (5) overlaps cover (2 and 4).

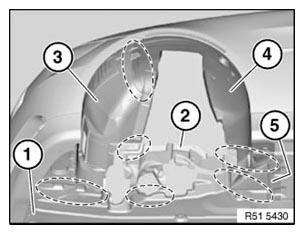

Fig 1: Identifying Panel And Cover (E90/E91/E92)
Courtesy of BMW OF NORTH AMERICA, INC.

E93:

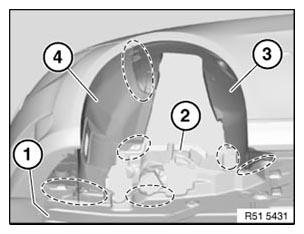

Fig 2: Identifying Panel And Cover (E93)

Courtesy of BMW OF NORTH AMERICA, INC.
