51 61... Removing and installing/replacing front rollover protection system strut
IMPORTANT:
Risk of damage!
Driving without the strut is not permitted!
Driving without the strut is not permitted!
Necessary preliminary tasks:
- Remove BACKREST .
- Remove PANEL FOR PASSENGER COMPARTMENT PARTITION .

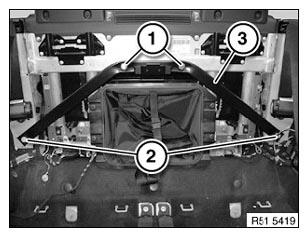

Release screws (1).
Tightening torque 51 71 27AZ .
Release screws (2) and remove strut (3).
Tightening torque 51 71 28AZ .
Installation:
Replace all screws.
