41 00... Frame Alignment Control Body Dimensions
Dimensions in mm.
Measurement tolerances:
- ≤ 1000 mm ± 1.5 mm
- ≥ 1000 mm ± 2.5 mm
The control points shown serve to check the body and the straightening attachment.
The specified dimensions/measurements always refer to the centerpoint of the bore/screw.
Under Body View 1

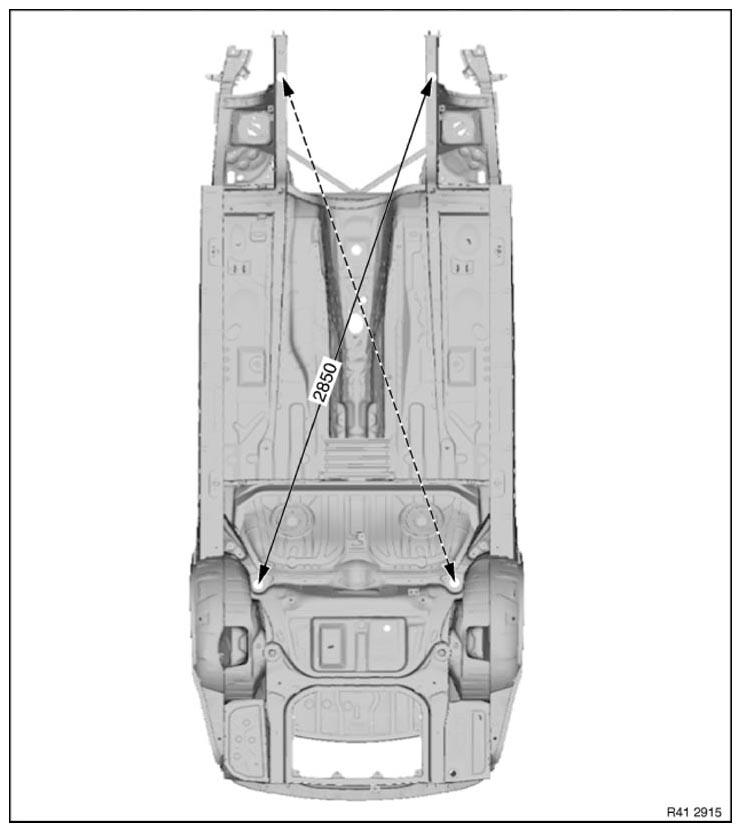

Fig 1: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body Dimension 1)
Under Body View 2

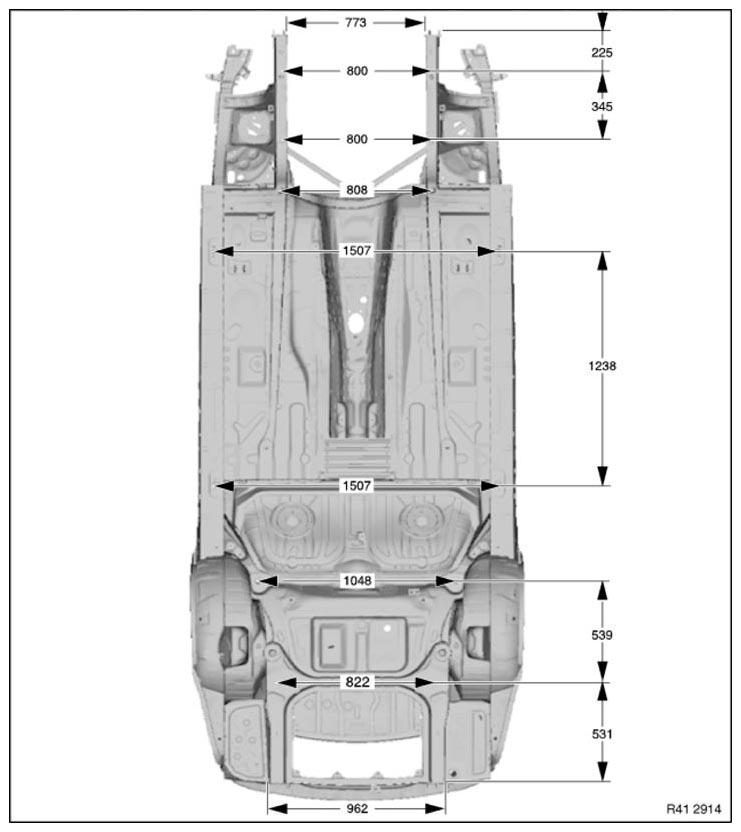

Fig 2: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body Dimension 2)
Top View, Front End

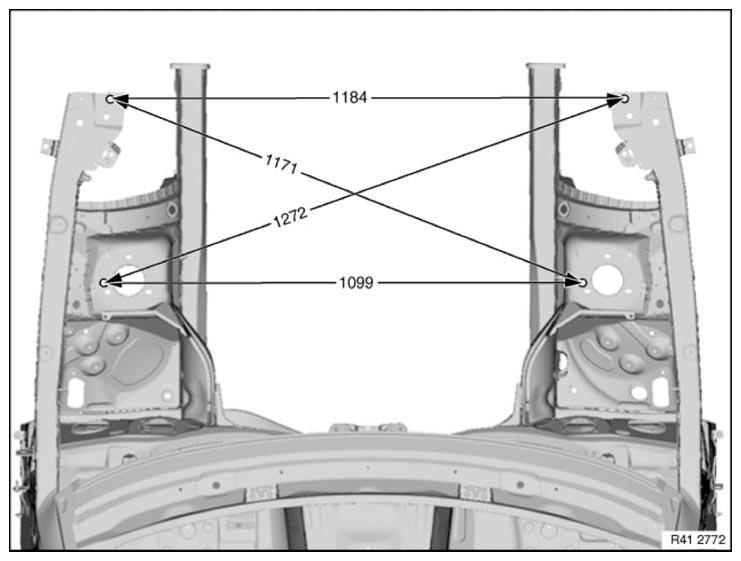

Fig 3: Engine Compartment Under Body Frame Alignment Control Dimensions And Measurement Points (Top View, Front End)
The specified dimensions refer to removed assemblies.

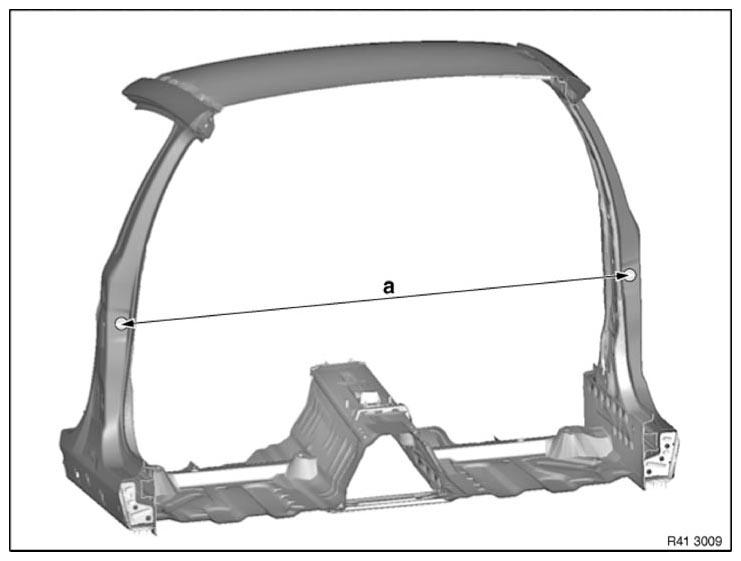

View, B-Pillar (Saloon And Touring Only)
Measurement a=1551 mm between screw-on points of door brakes.

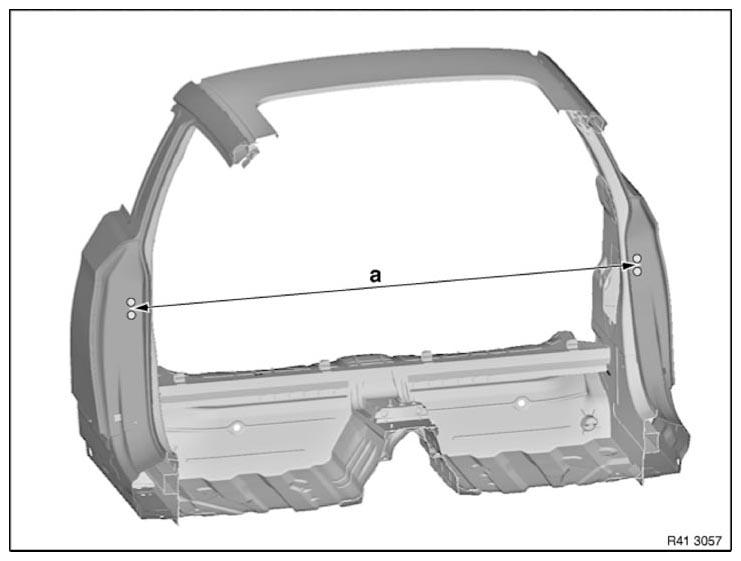

View, B-Pillar (Coupe Only)
Measurement a=1543 mm between screw-on points of lock strikers.
