31 00... Notes on repairing threads

IMPORTANT: Install Helicoil thread inserts so that they are flush with the original thread.

NOTE: Damaged threads in engine support may be repaired with Helicoil thread inserts. Comply with the procedure described in the example.

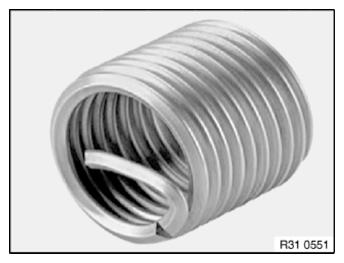

Fig 1: Identifying Helicoil Thread

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure:

Create a clean core hole; if necessary, drill out screw remnants.

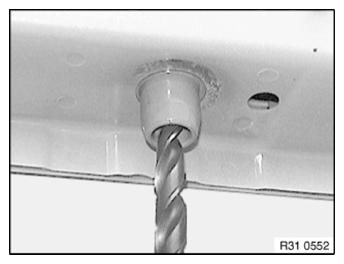

Fig 2: Drilling Out Screw Remnants
Courtesy of BMW OF NORTH AMERICA, INC.
Create locating thread for Helicoil thread insert.

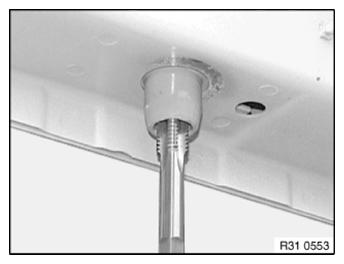

Fig 3: Inserting Screwdriver In Helicoil Thread
Courtesy of BMW OF NORTH AMERICA, INC.
Pick out Helicoil thread insert in accordance with the TABLE and screw into the locating thread until flush with the original thread.

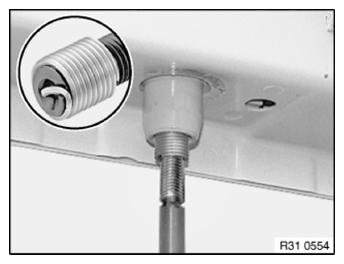

Fig 4: Removing Helicoil Thread
Courtesy of BMW OF NORTH AMERICA, INC.
Break drive pin and remove.

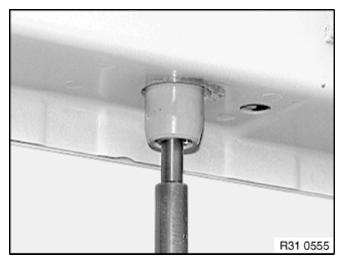

Fig 5: Removing Break Drive Pin
Courtesy of BMW OF NORTH AMERICA, INC.
