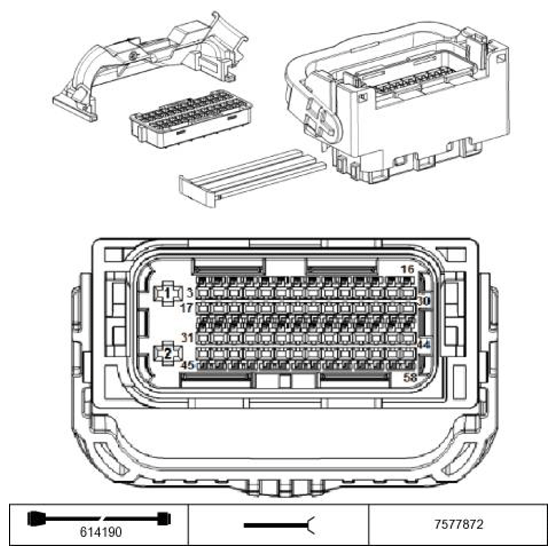

DME Control Module SX60002A Connector End View
Pin Assignments At Plug Connector X60002
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Wake-up signal, terminal 15 | Connector, terminal 15 wake-up |
| 2 | -- | Not occupied | |
| 3 | -- | Not occupied | |
| 4 | -- | Not occupied | |
| 5 | E | Signal, oxygen sensor | Oxygen sensor 2 before catalytic converter |
| 6 | E | Signal, oxygen sensor | Oxygen sensor before catalytic converter |
| 7 | E | Signal, oxygen sensor | Oxygen sensor 2 before catalytic converter |
| 8 | E | Signal, oxygen sensor | Oxygen sensor before catalytic converter |
| 9 | E | Signal, oxygen sensor | Oxygen sensor 2 before catalytic converter |
| 10 | M | Ground Oxygen sensor before catalytic converter | Oxygen sensor before catalytic converter |
| 11 | M | Ground Oxygen sensor 2 before catalytic converter | Oxygen sensor 2 before catalytic converter |
| 12 | E | Signal, oxygen sensor heating | Oxygen sensor before catalytic converter |
| 13 | E | Signal, oxygen sensor heating | Oxygen sensor 2 before catalytic converter |
| 14 | -- | Not occupied | |
| 15 | -- | Not occupied | |
| 16 | E | USA Signal, fuel tank leak diagnosis pump | Diagnostic module for fuel tank leakage |
| 17 | E | USA Signal, fuel tank leak diagnosis heating | Diagnostic module for fuel tank leakage |
| 18 | E | Signal, oxygen sensor | Oxygen sensor before catalytic converter |
| 19 | E | Signal, oxygen sensor | Oxygen sensor 2 behind catalytic converter |
| 20 | E | Signal, oxygen sensor | Oxygen sensor behind catalytic converter |
| 21 | -- | Not occupied | |
| 22 | E | USA Signal, fuel tank leak diagnosis valve | Diagnostic module for fuel tank leakage |
| 23 | M | Ground Oxygen sensor behind catalytic converter | Oxygen sensor behind catalytic converter |
| 24 | M | Ground Oxygen sensor 2 behind catalytic converter | Oxygen sensor 2 behind catalytic converter |
| 25 | E | Signal, oxygen sensor | Oxygen sensor 2 behind catalytic converter |
| 26 | E | Signal, oxygen sensor | Oxygen sensor behind catalytic converter |
