EMC measures E91
Courtesy of BMW OF NORTH AMERICA, INC.

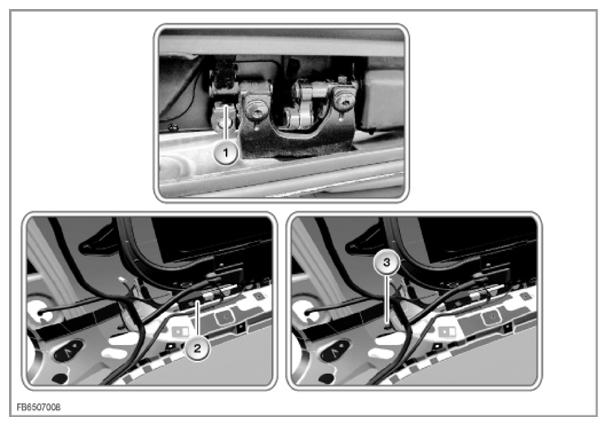

| Index |
Explanation |
| 1 |
Earth strap on the luggage compartment lid:
integrated in the luggage compartment hinge |
| 2 |
Suppressor filter for the additional brake light:
secured above the D-pillar, under the headlining |
| 3 |
Cable choke:
Secured above the D-pillar under the headlining |
Notes for Service department
