Functional networking

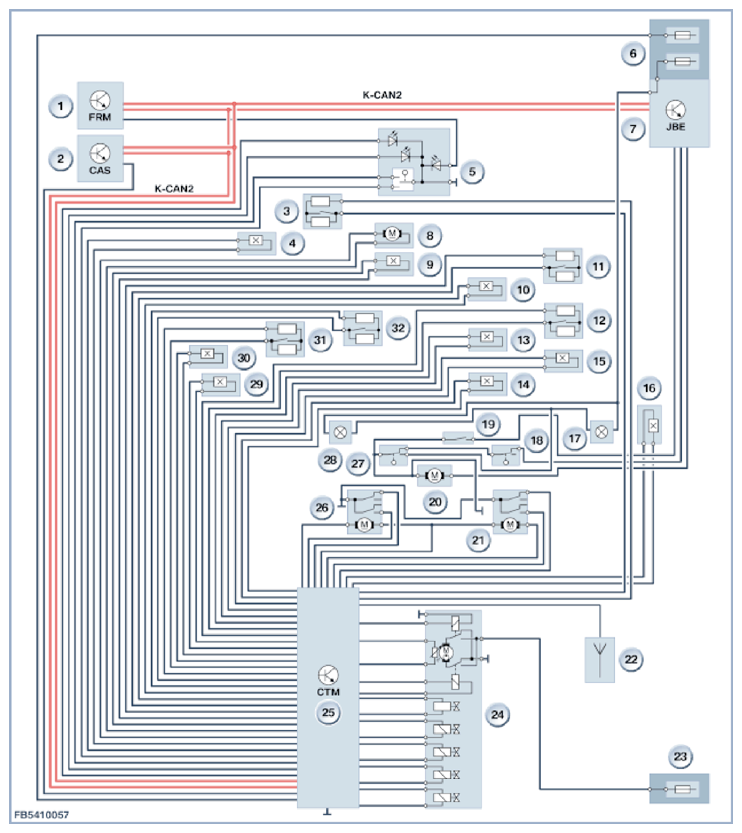

The overview of functions shows the operating networks of the control units involved in the processes.
Diagram of Hall-effect sensors and microswitches does not portray individual installation positions.
| Index | Explanation |
|---|---|
| 1 | Footwell module (FRM) |
| 2 | Car access system (CAS) |
| 3 | Micro switch 'cowl panel reached' |
| 4 | Hall effect sensor 'roof package set up' |
| 5 | Button for operation |
| 6 | Front fuse and relay module |
| 7 | Junction Box Electronics (JBE) |
| 8 | Drive for hardtop locking |
| 9 | Hall sensor 'roof package stored' |
| 10 | Hall effect sensor right "Roof package stored" (additional hall effect sensor left "Roof package stored" not shown) |
| 11 | Micro-switch 'right-hand interlocking ring buckle closed' |
| 12 | Micro switch 'cowl panel unlocked' |
| 13 | Hall sensor 'roof shells partially opened' |
| 14 | Hall sensor 'roof shells partially closed' |
| 15 | Hall sensor 'right-hand interlocking ring buckle opened' |
| 16 | Hall sensor for luggage compartment partition |
| 17 | Right luggage compartment light |
| 18 | Luggage compartment lock, right |
| 19 | Rear lid button |
| 20 | Electric motor for rear lid lock |
| 21 | Electric motor for Automatic Soft Close feature, right |
| 22 | Diversity aerial |
| 23 | Power distribution box, rear |
| 24 | Hydraulic unit |
| 25 | Convertible-top module (CTM) |
| 26 | Drive unit for Automatic Soft Close feature, left |
| 27 | Luggage compartment lock, left |
| 28 | Left luggage compartment light |
| 29 | Hall sensor 'rear module opened' |
| 30 | Hall sensor rear module almost closed |
| 31 | Micro switch 'cowl panel locked' |
| 32 | Micro-switch 'left-hand interlocking ring buckle closed' |
