Structure and inner electrical connection

The alternator has a separate terminal for the positive battery lead. The control variables (e.g. nominal voltage of alternator) are transferred to the controller via the serial data interface (BSD or LIN).

The regulator is attached to the back of the alternator.

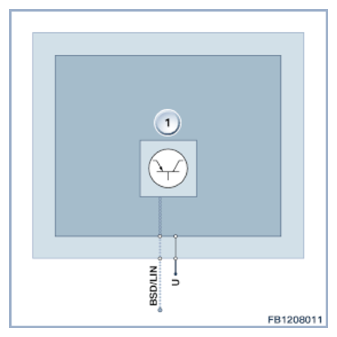

Fig 1: Identifying Electronic Component With Controller

Courtesy of BMW OF NORTH AMERICA, INC.
