61 31 101 Removing and installing/replacing switch for backrest width adjustment

Necessary preliminary tasks:

• Remove OUTER COVER on front seat

Disconnect plug connection (1).

Unlock retaining tab (2) in direction of arrow.

Remove switch for backrest width adjustment (3) in direction of arrow.

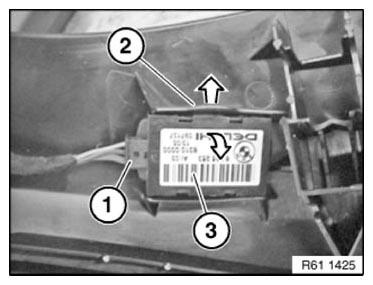

Fig 1: Unlocking Retaining Tab

Courtesy of BMW OF NORTH AMERICA, INC.
