41 00... Overview Of Adhesive Cartridge Guns

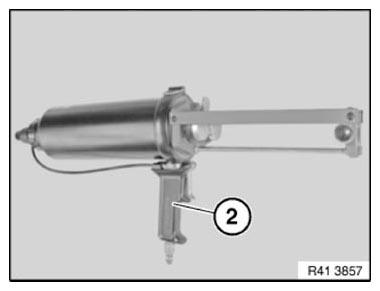

Adhesive gun 83 19 2 149 522

Usable for adhesives K4, K5a.

Usable for BMW 2K polyurethane foam.

Including insert 1:1 and 2:1.

Courtesy of BMW OF NORTH AMERICA, INC.

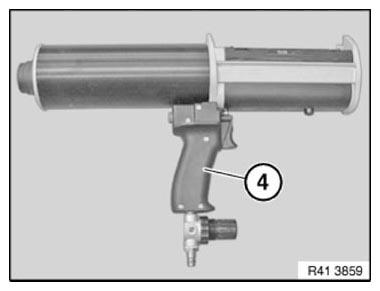

Adhesive gun 81 49 0 443 166

Usable for adhesive K3.

Courtesy of BMW OF NORTH AMERICA, INC.

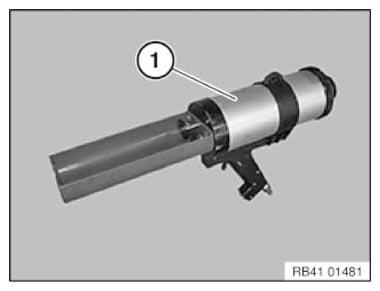

Adhesive cartridge gun 81 49 2 213 059

Usable for adhesives K1, K5b, sealant D1/D2, window glass adhesive and all 310 ml Euro cartridges.

Courtesy of BMW OF NORTH AMERICA, INC.

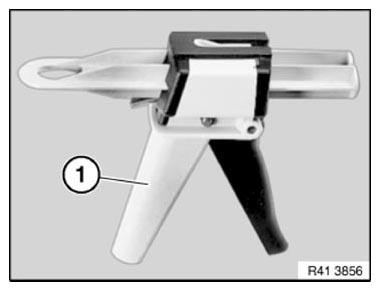

Adhesive cartridge gun 83 30 0 494 836

Usable for structural foam HS2.

Courtesy of BMW OF NORTH AMERICA, INC.

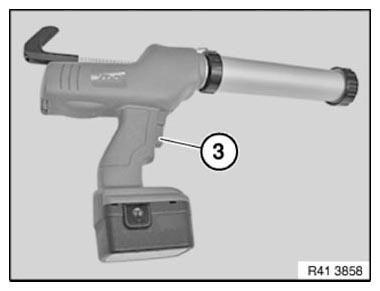

Adhesive cartridge gun 81 49 2 355 475

Usable for adhesive K2 (2x290 ml glue cartridge)

Courtesy of BMW OF NORTH AMERICA, INC.
