DME Control Module X60003 Connector End View

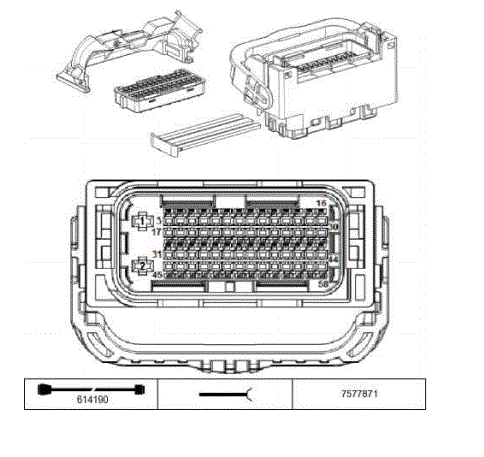

G00596543Courtesy of BMW OF NORTH AMERICA, INC.

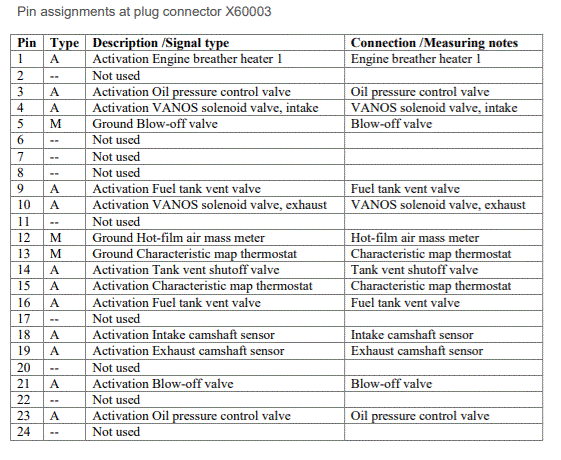

G00596551Courtesy of BMW OF NORTH AMERICA, INC.

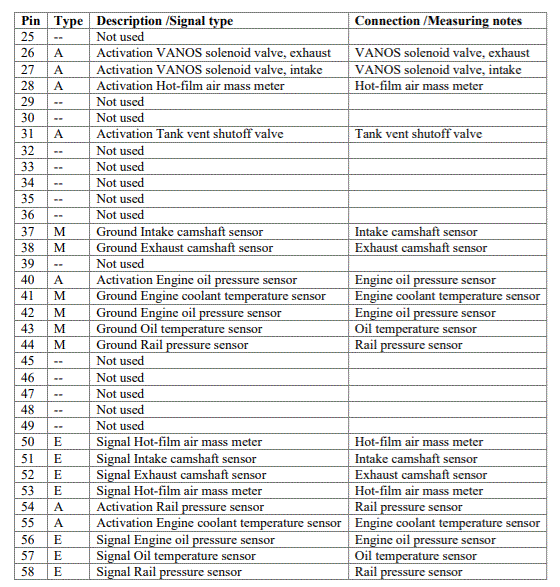

G00596552Courtesy of BMW OF NORTH AMERICA, INC.
