00 00... CBS reset

IMPORTANT: The CBS maintenance jobs can be reset in the car. It is always recommended to reset the CBS jobs via the diagnosis system. It is only possible to code the statutory intervals specific to individual countries with the diagnosis system.

CBS reset with diagnosis system

IMPORTANT: To be able to check and/or correct the car's on-board date properly, the diagnosis system requires the correctly set tester system date!
The jobs may only be reset after the service measure has been completed.
The brake pads can only be reset with a new brake pad wear sensor.

The CBS jobs can be reset via the diagnosis system on the following path:

Start diagnosis
Carry out vehicle identification
Function selection
Service functions
Maintenance
CBS reset

Fig 1: Identifying DIS Screen
Courtesy of BMW OF NORTH AMERICA, INC.

CBS reset in the car

The service jobs can be reset in the car at the instrument cluster. Here, the availability of a service job is reset to 100 % (corresponding to new component). The availability is an internal computing value (not visible to the operator).

NOTE: A reset is only possible in the car if:

there is no Check Control message
availability of the service job is under 80 %
on-board date must be correctly set

Resetting of a service job must always be carried out after a maintenance measure has been completed.

The resetting procedure is aborted by a timeout or a terminal change.

Switch on ignition.

Press the trip odometer reset button (referred to as button in the following) for approx. 10 seconds until the 1st service job appears in the LC display.

Bring up the next item by briefly pressing the button again. Select desired service job.

NOTE: The upper display in the instrument cluster is illuminated by a service symbol (e.g.: an oil can denotes an oil change).

The lower display in the instrument cluster indicates the time or distance remaining until the next service (e.g.: 29000).

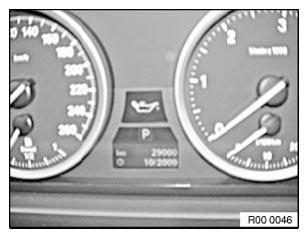

Fig 2: Display - Instrument Cluster Time/Distance Screen

Courtesy of BMW OF NORTH AMERICA, INC.

If the job is to be reset, press the button again for approx. 3 seconds until the message "Reset?" appears.

Acknowledge the reset by pressing the button for 3 seconds.

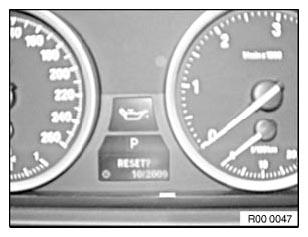

Fig 3: Identifying LC Display (Reset)

Courtesy of BMW OF NORTH AMERICA, INC.

CBS reset of inspections/tests required by law

Input the target for the inspections/test required by law (vehicle/ emissions) by clicking on the job with the controller in the CBS menu of the Control Display at:

Fig 4: Control Display - CBS Menu

Courtesy of BMW OF NORTH AMERICA, INC.

Press controller to call up i menu
Select Info sources and press controller
Select Service and press controller
Select Service requirements and press controller
Select Stat. vehicle insp. and press controller
Select Status and press controller
Select Schedule date for service and press controller
The target month or the target year can be set and acknowledged by turning and pressing
